Description
Description:
| Motor Type | IPM PMSM | Feedback Control | ABZ+PWM Encoder |
| Operating Voltage | 60V-72V | Thermal Sensor | NTC |
| Nominal Power | Up to 6 kW | Ingress Protection | IP 67 |
| Peak Power | Up to 12 kW | Cooling Method | Air Cooled |
| Rated Torque | 22 Nm | Motor Weight | 18 kg |
| Peak Torque | 80 Nm | Max Ambient Operating Temperature | 50 Deg C |
| Max Speed | 6500 | Air Flow (min) | 5 m/s |
| ** Can be customized as per the requirement | |||

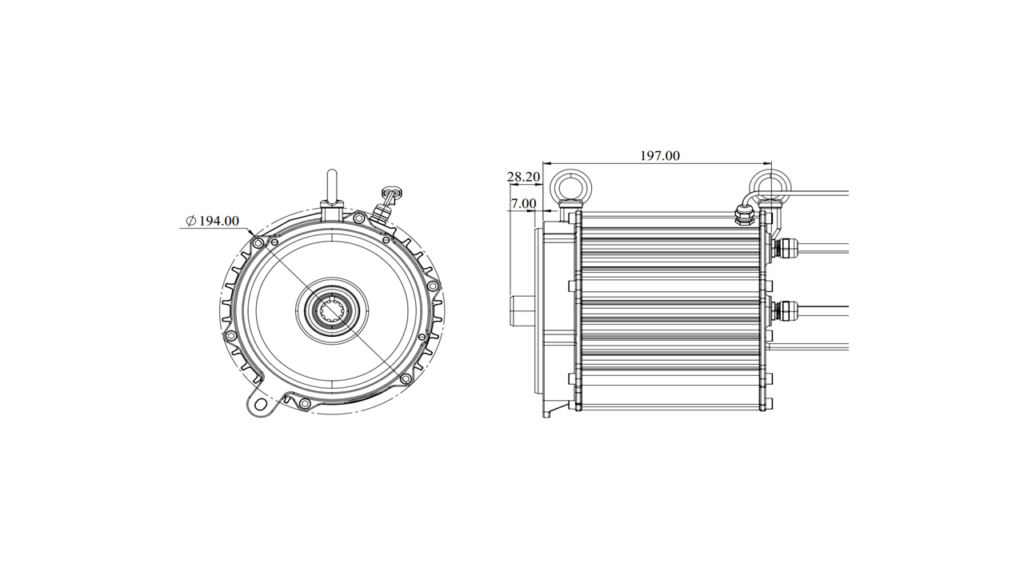

Motor Diagram:

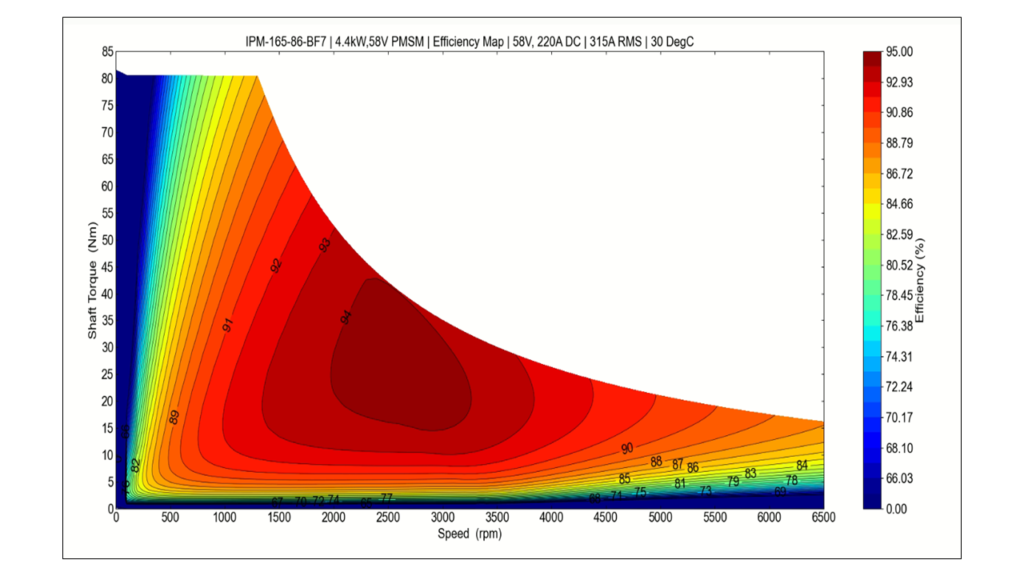

Performance Curve:
