Description
Description
| Motor Type | IPM PMSM | Feedback Control | ABZ+PWM Encoder |
| Operating Voltage | 48V-72V | Thermal Sensor | NTC |
| Nominal Power | Up to 5kW | Ingress Protection | IP 67 |
| Peak Power | Up to 10kW | Cooling Method | Air Cooled |
| Rated Torque | 16 Nm | Motor Weight | 10.5 kg |
| Peak Torque | 50 Nm | Max Ambient Operating Temperature | 50 Deg C |
| Max Speed | 7000 | Air Flow (min) | 5 m/s |
| ** Can be customized as per the requirement | |||
Motor Diagram:

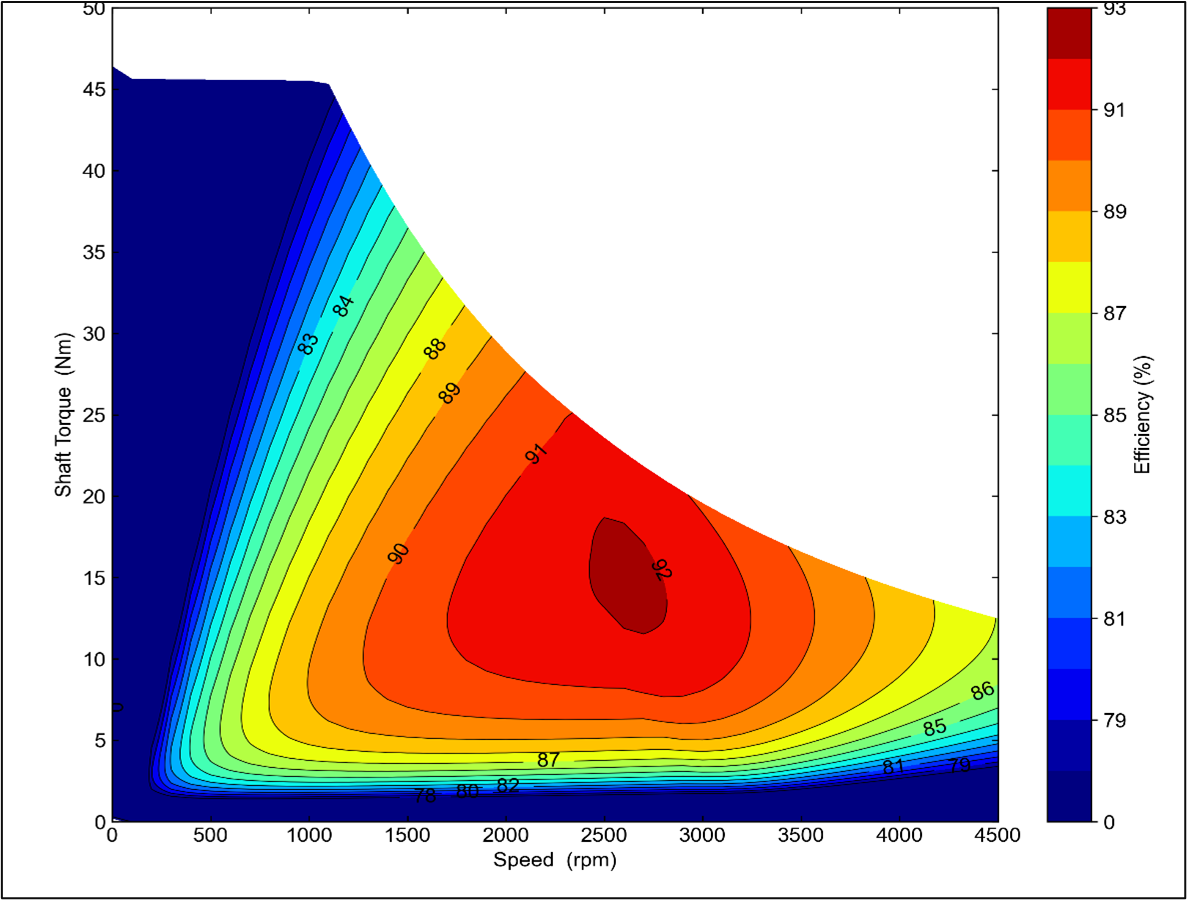

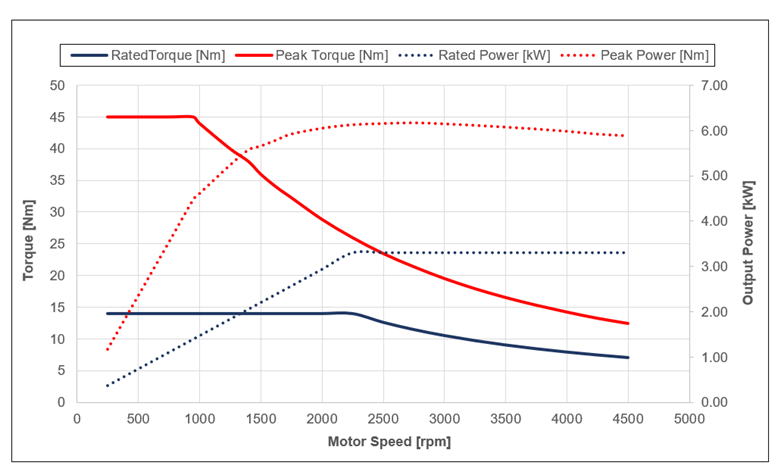

Performance Curve:
