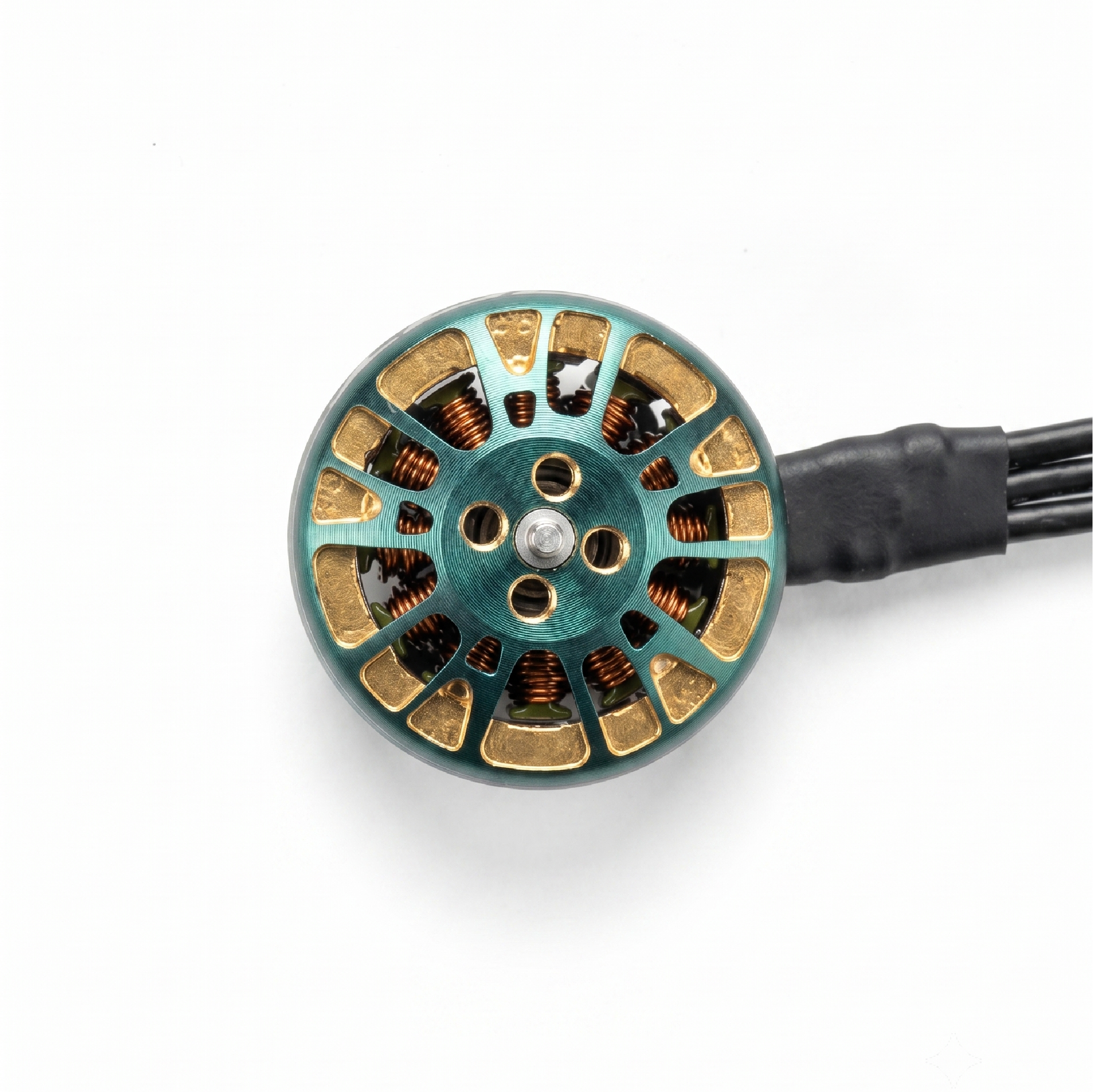

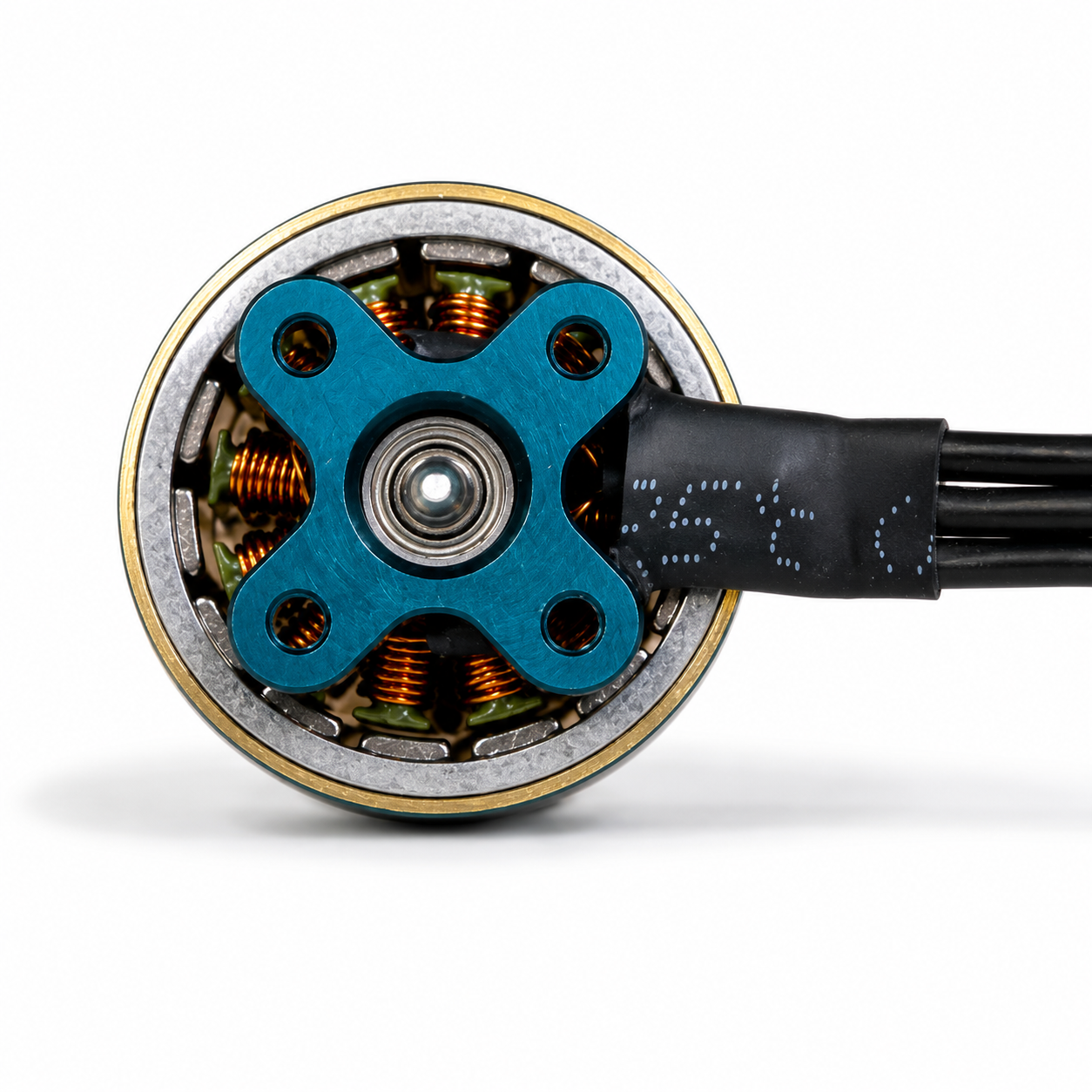

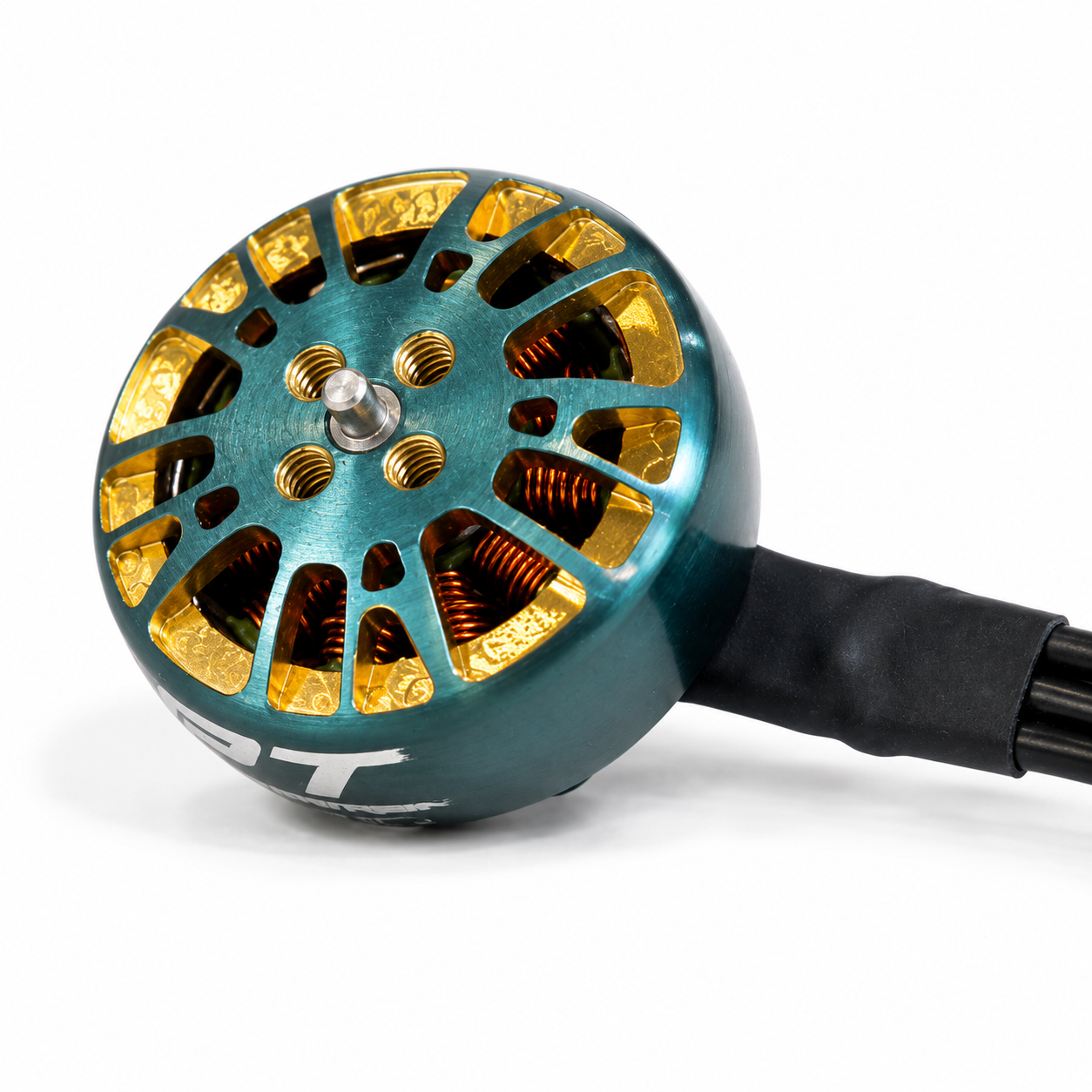

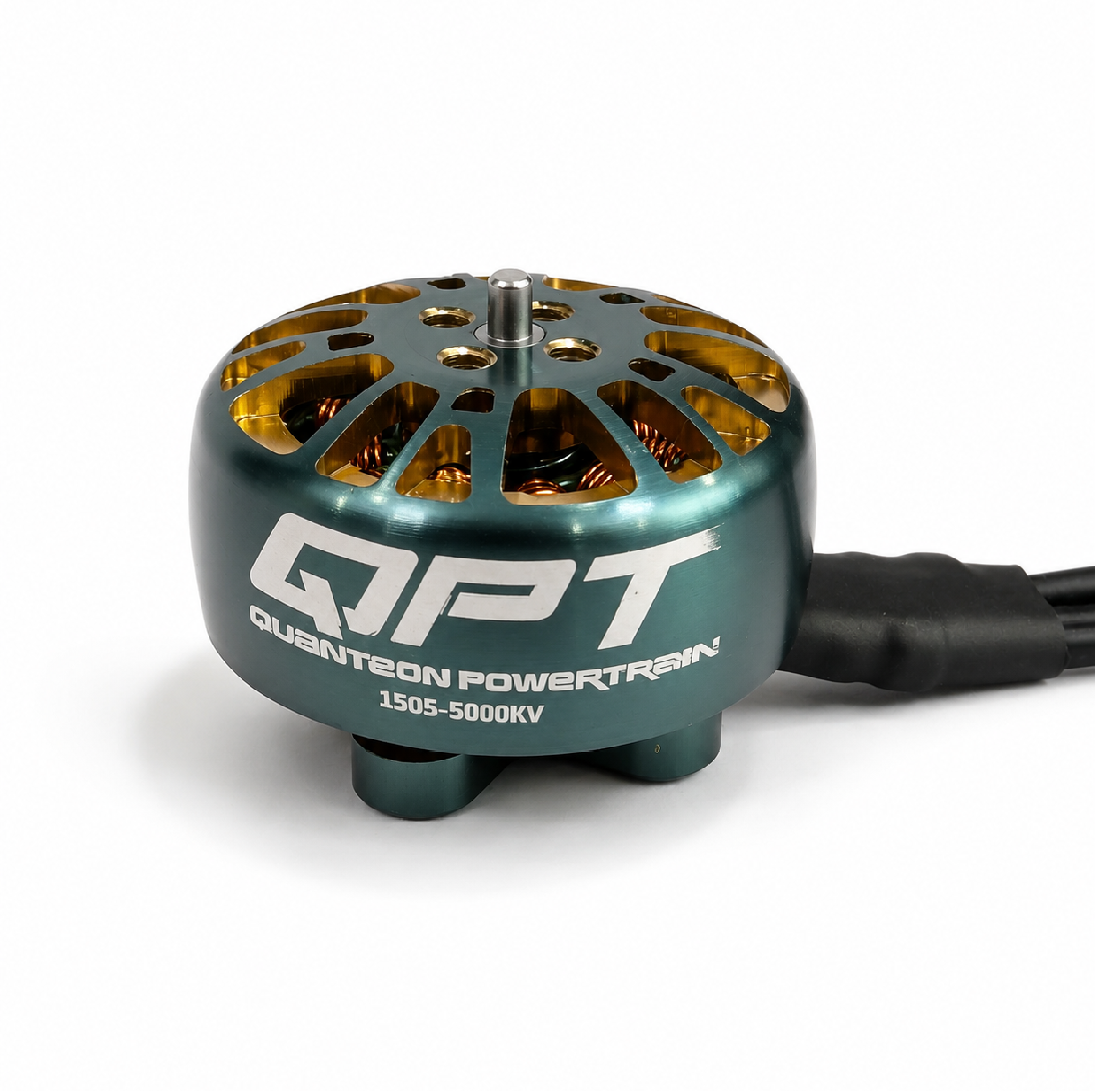

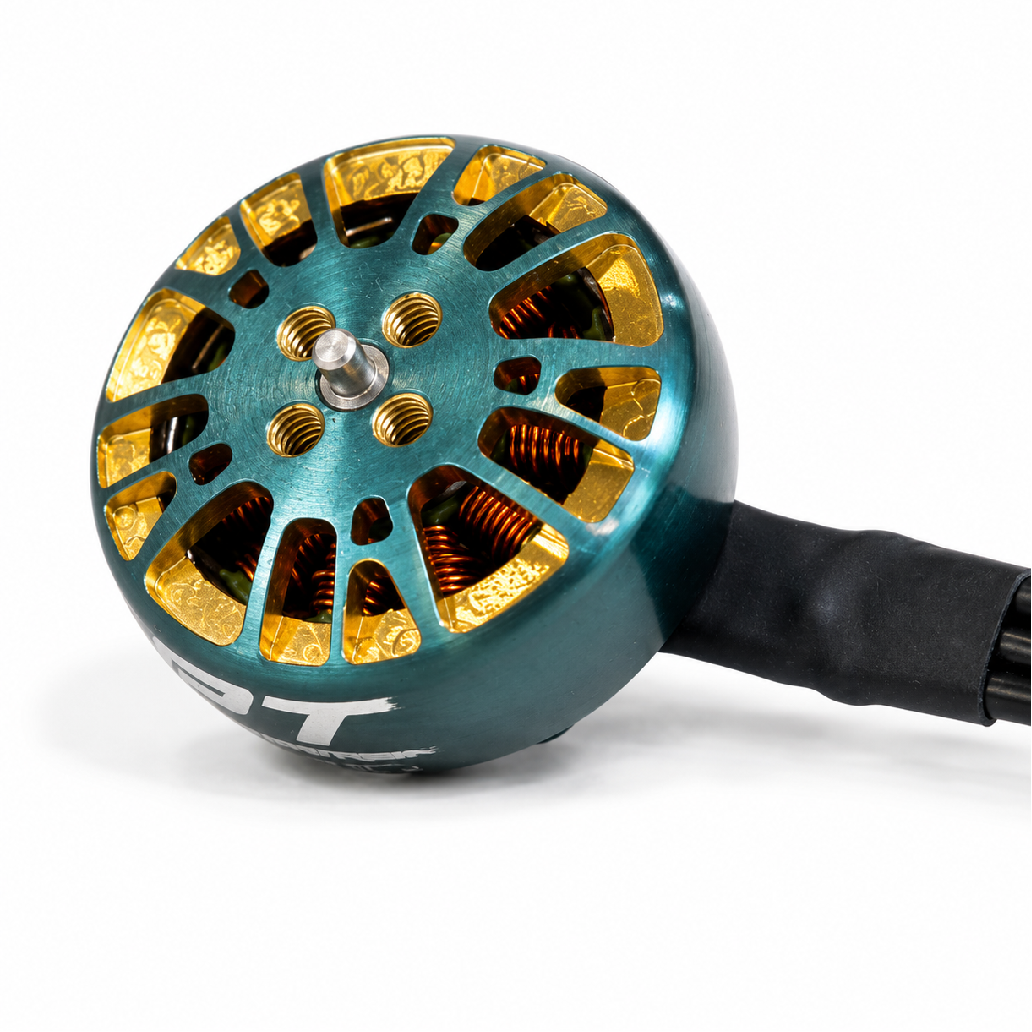

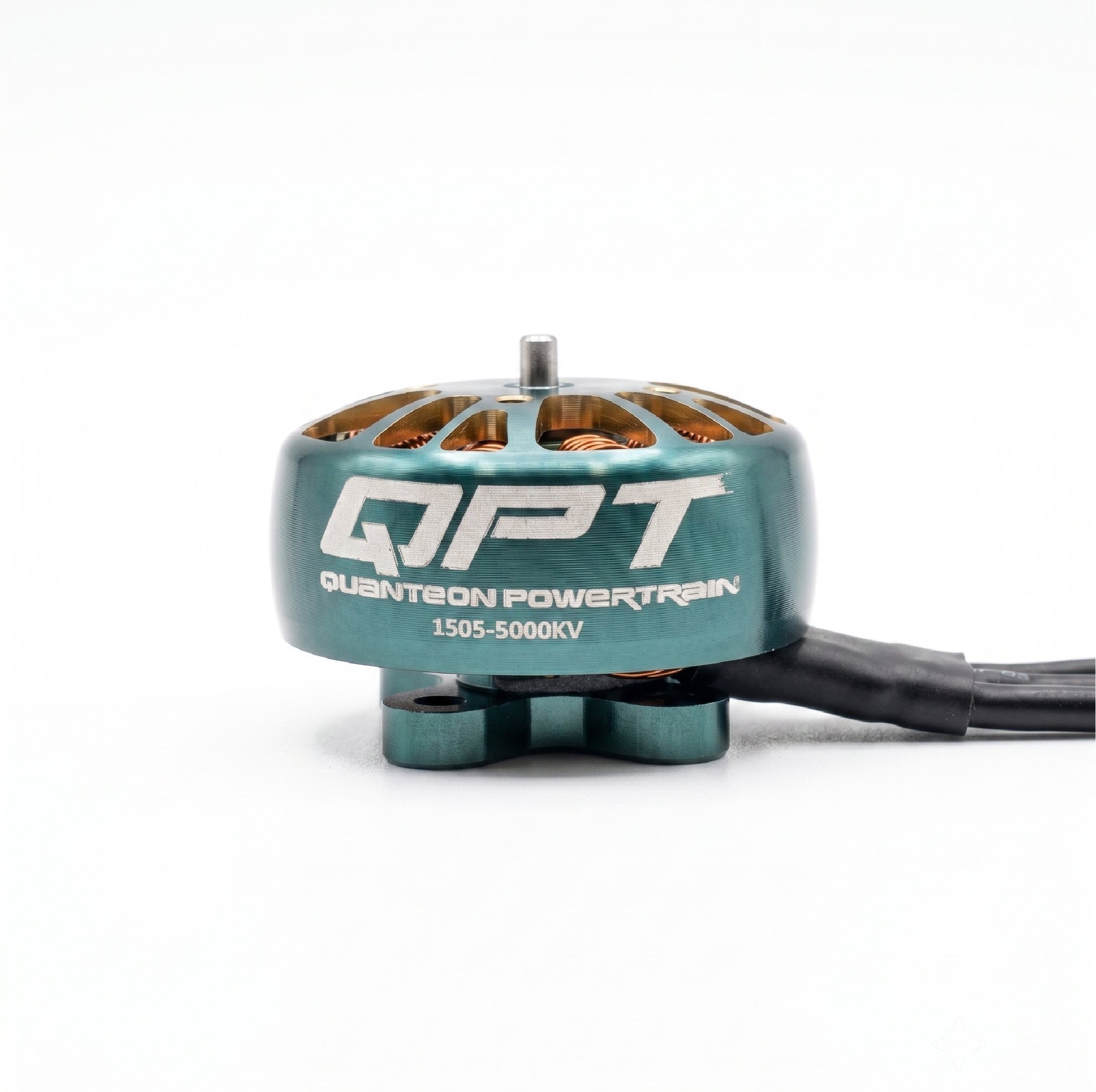

QPT 1505 KV5000

This motor is built for micro-class multirotor applications — ideal for tiny whoops, indoor freestyle, and lightweight 1S-powered builds where high RPM and quick throttle response matter most.

Performance Highlights:
High RPM for Micro Applications: Spins up to 13,535 RPM, giving quick, punchy response ideal for whoop-class freestyle flying
Efficient Cruise Range: Delivers up to 17.4 g/W of thrust efficiency at partial throttle, helping extend flight time on small 1S packs
Smooth, Predictable Power Curve: Power output scales cleanly from under 1W at idle to over 15W at full throttle, giving fine low-end control
Lightweight-Class Thrust: Produces up to 47.65g of thrust — strong output relative to its 1S/micro motor class

Categories: Drone, FPV Tag: FPV

Description

General specifications:

Parameter	Value
KV Rating	5000 KV
Recommended Voltage	1S (~3.5–3.65V)
Max Current	4.35 A
Max Input Power	15.1 W
Max Thrust	47.65 g
Max RPM	13,535
Peak Motor Efficiency	56.9% (at full throttle)
Peak Force Efficiency	17.4 g/W (at 30% throttle)

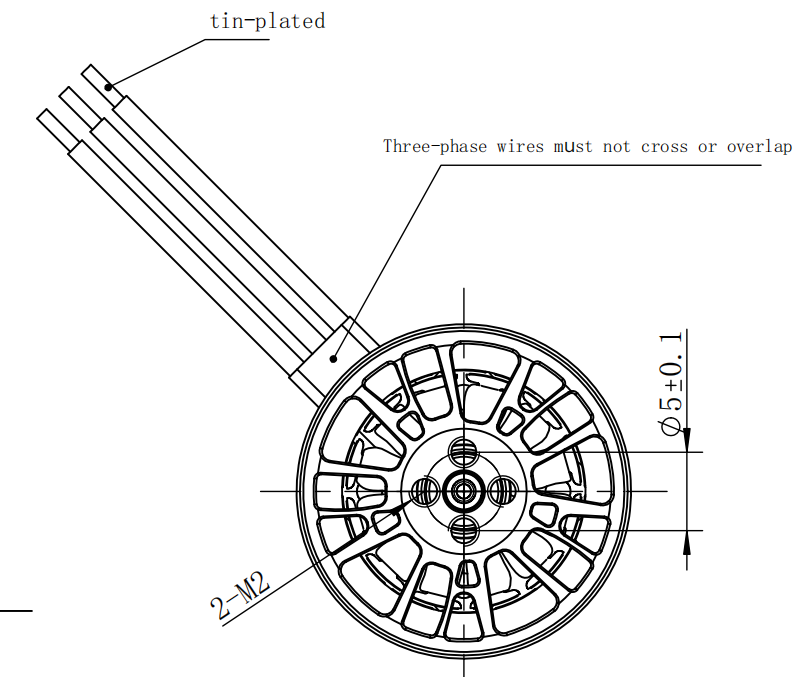

Motor Drawing:

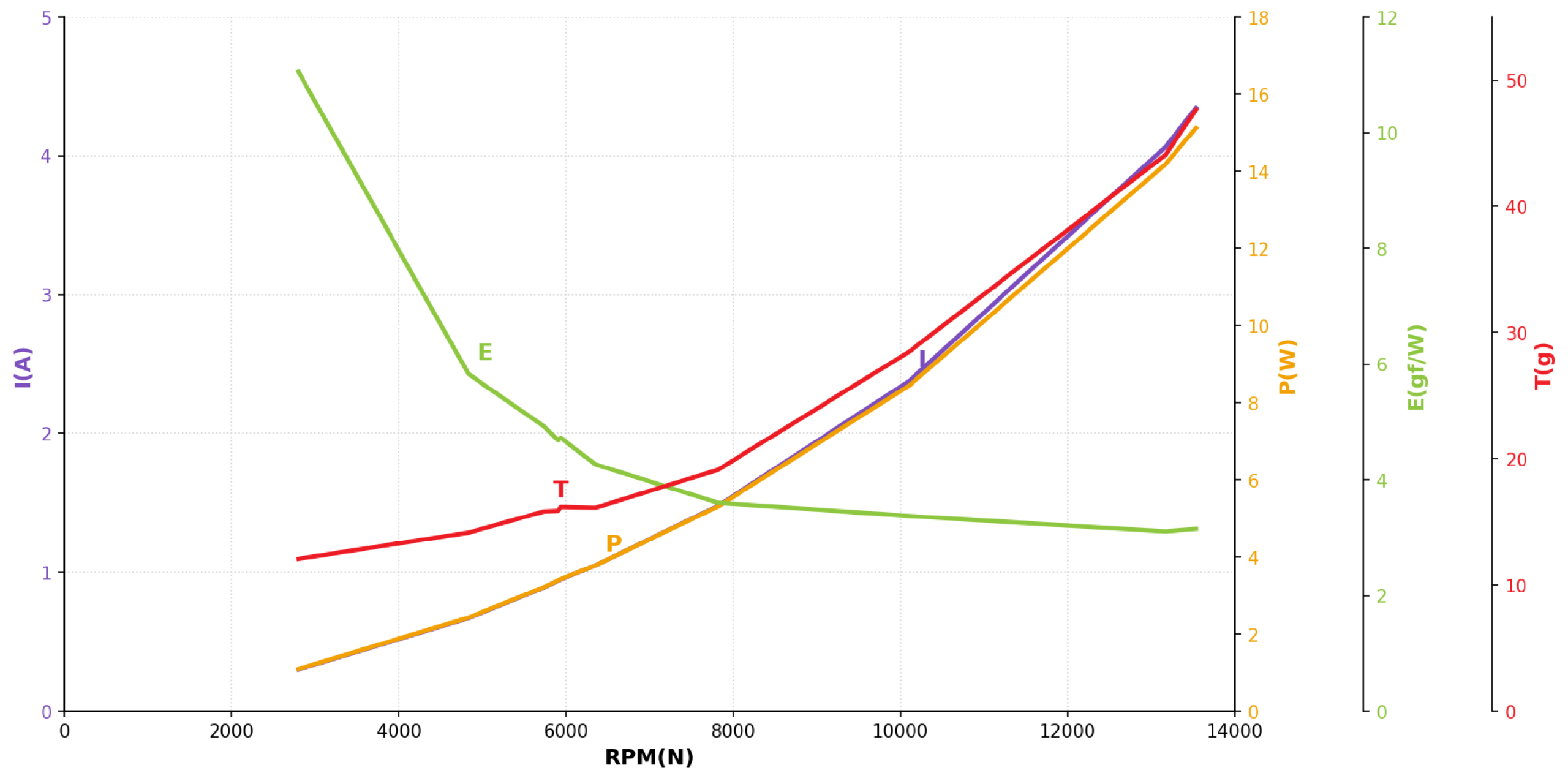

PERFORMANCE CURVE

Throttle(%)	U(V)	I(A)	N(RPM)	F(KG)	T(N.M)	Motor output power(W)	System input power(W)	Motor efficiency	Propeller force efficiency(G/W)	System force efficiency(G/W)	Z Position	Infrared temperature(C)
0	3.65	-0.006	0.9	0.01146	0.0004	0	0	0	0	0	0	-55
10	3.64	0.3	2798.2	0.01207	0.0007	0.2	1.1	0.183	0	11.071	0	-55
20	3.62	0.67	4831.6	0.01414	0.0012	0.6	2.4	0.253	0	5.829	0	-55
30	3.61	0.89	5733.6	0.01582	0.0015	0.9	3.2	0.278	17.44	4.922	0	-55
40	3.61	0.939	5902.3	0.01587	0.0015	0.9	3.4	0.275	16.791	4.687	0	-55
50	3.61	0.948	5933.3	0.01618	0.0015	0.9	3.4	0.275	16.975	4.733	0	-55
60	3.6	1.05	6353.3	0.01612	0.0016	1.1	3.8	0.278	15.246	4.26	0	-55
70	3.59	1.479	7817.4	0.01913	0.0019	1.6	5.3	0.295	12.095	3.607	0	-55
80	3.55	2.379	10104.3	0.02849	0.0033	3.5	8.5	0.41	8.194	3.37	0	-55
90	3.49	4.063	13165.7	0.04406	0.0057	7.9	14.2	0.557	5.565	3.108	0	-55
100	3.48	4.345	13535.1	0.04765	0.0061	8.6	15.1	0.569	5.514	3.151	0	-55
