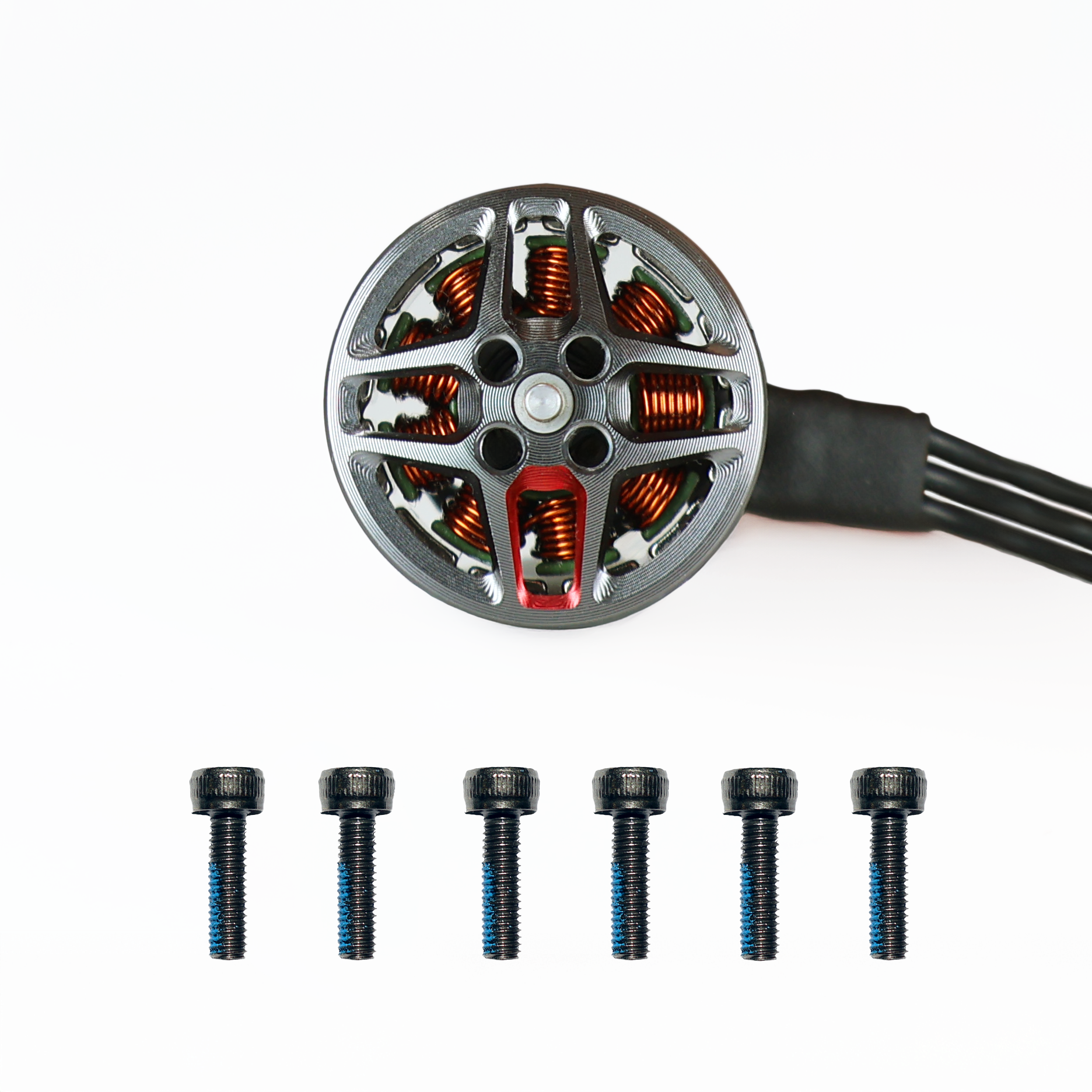

1404.5 Training Drone Motor

Original price was: ₹1,899.00.Current price is: ₹1,649.00.

This motor is specifically designed for propellers from 2.5 to 4 inch for training, soccer drone or freestyle flying using 3S / 4S battery. The motor incudes a lightweight titanium shaft and the high-efficiency 0.15mm silicon steel for its stator laminations. Standard drone motors often use 0.35mm or 0.2mm sheets. By using ultra-thin 0.15mm silicon steel, the motor significantly reduces heat buildup caused by “eddy currents” during high-speed rotation.

      • Higher Efficiency: Thinner laminations allow the motor to convert more electrical energy into mechanical thrust rather than wasting it as heat.
      • Better Power-to-Weight: Using this specialized steel helps keep the motor weight at a lean 10 grams while still delivering up to 400 grams of thrust, the highest amongst the other motors.
Categories: , Tag:

Description

General specifications:

RPM/V 4500 kV
Internal Resistance

135 ± 3 mΩ

No load Current 0.54 A
Max thrust 400 gm
Max Power 240W
Max Current 14.5 A
Motor Size

ф18 * 16 mm

Motor Weight (Incl. Cable) 10 g

Motor drawing:

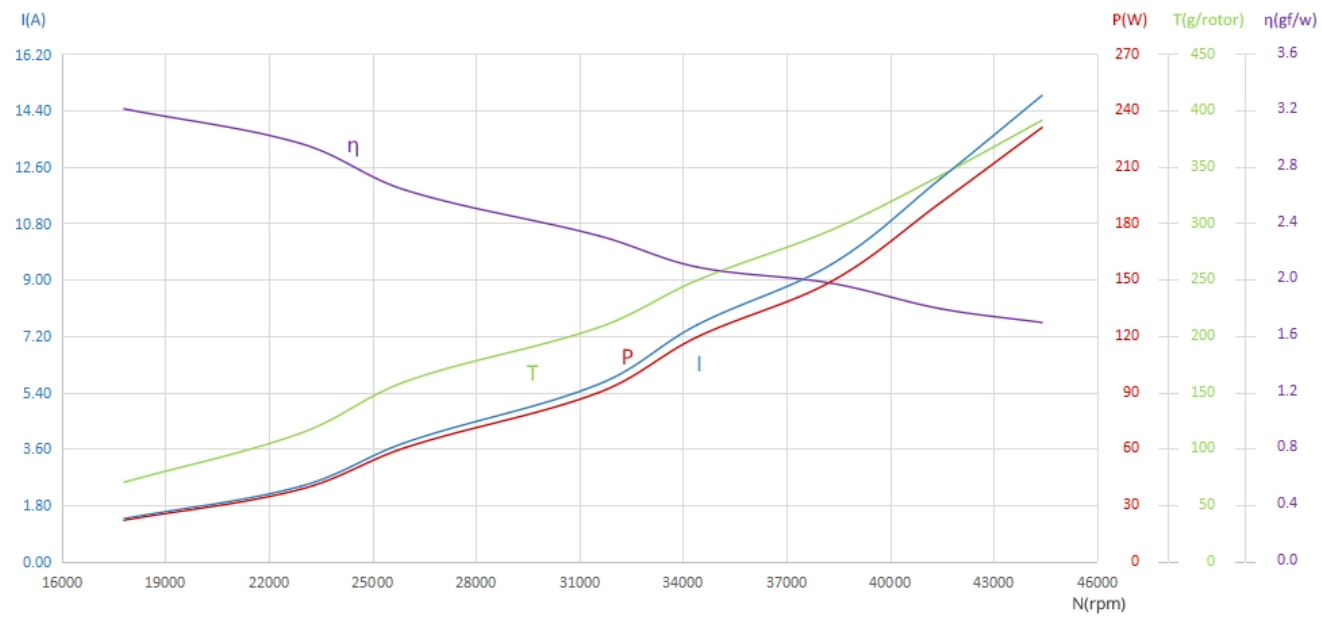

Performance curve:
