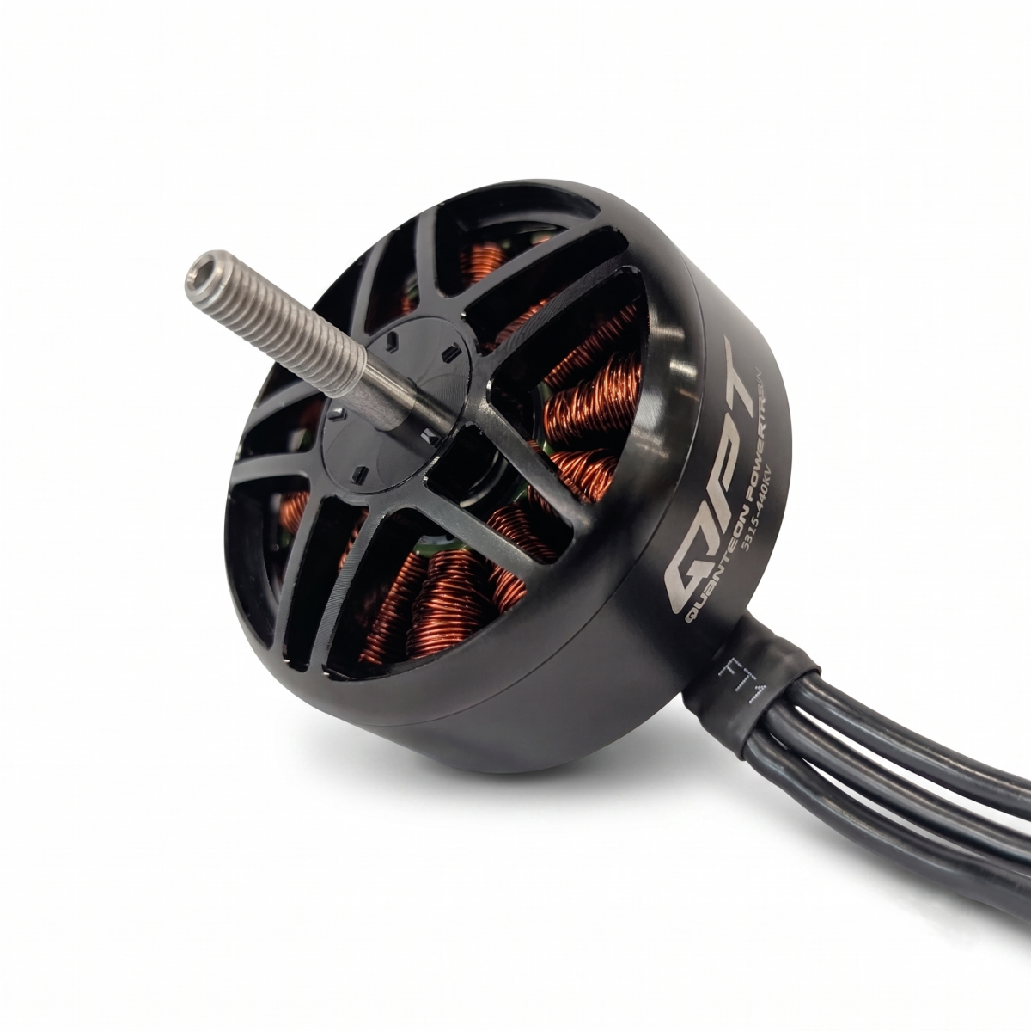

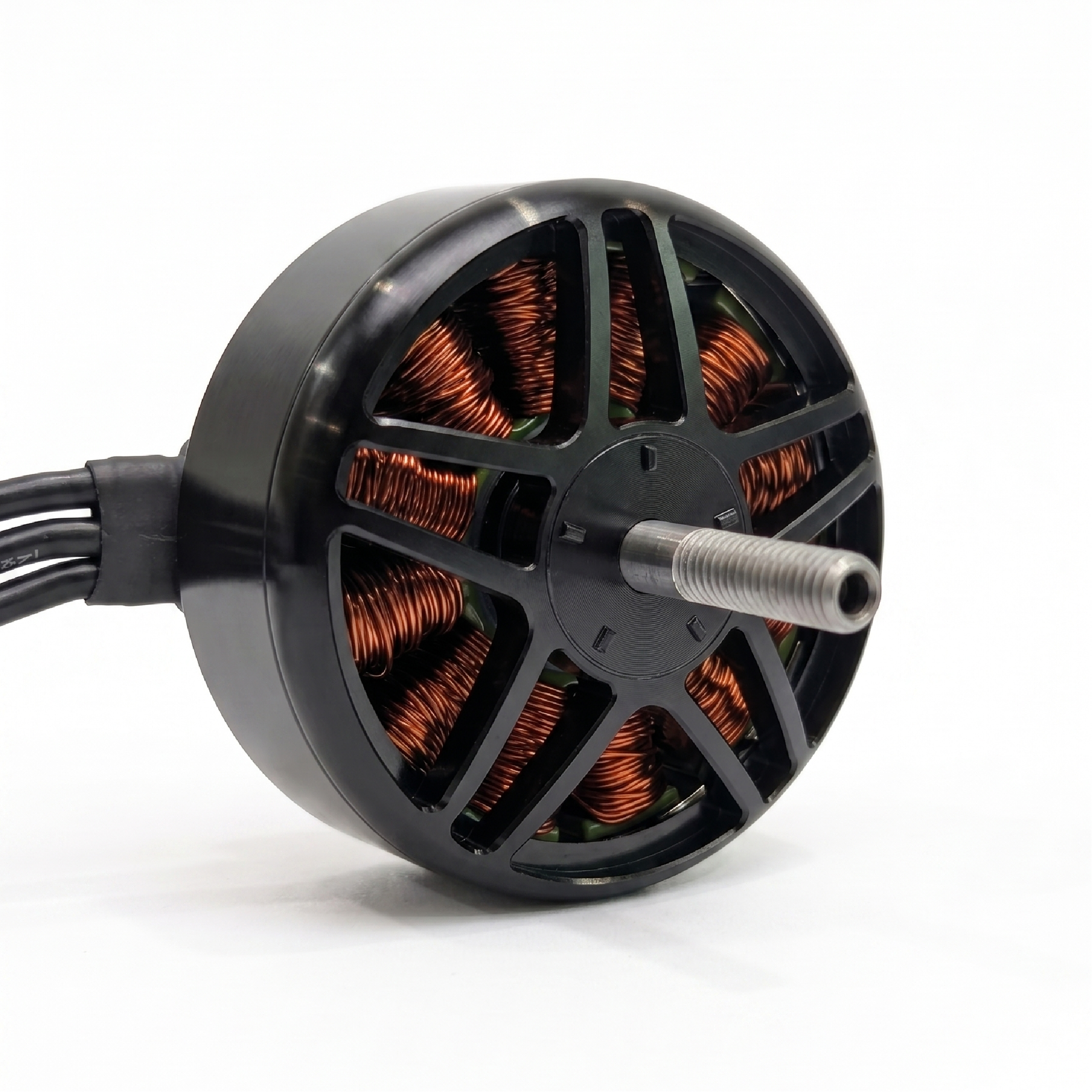

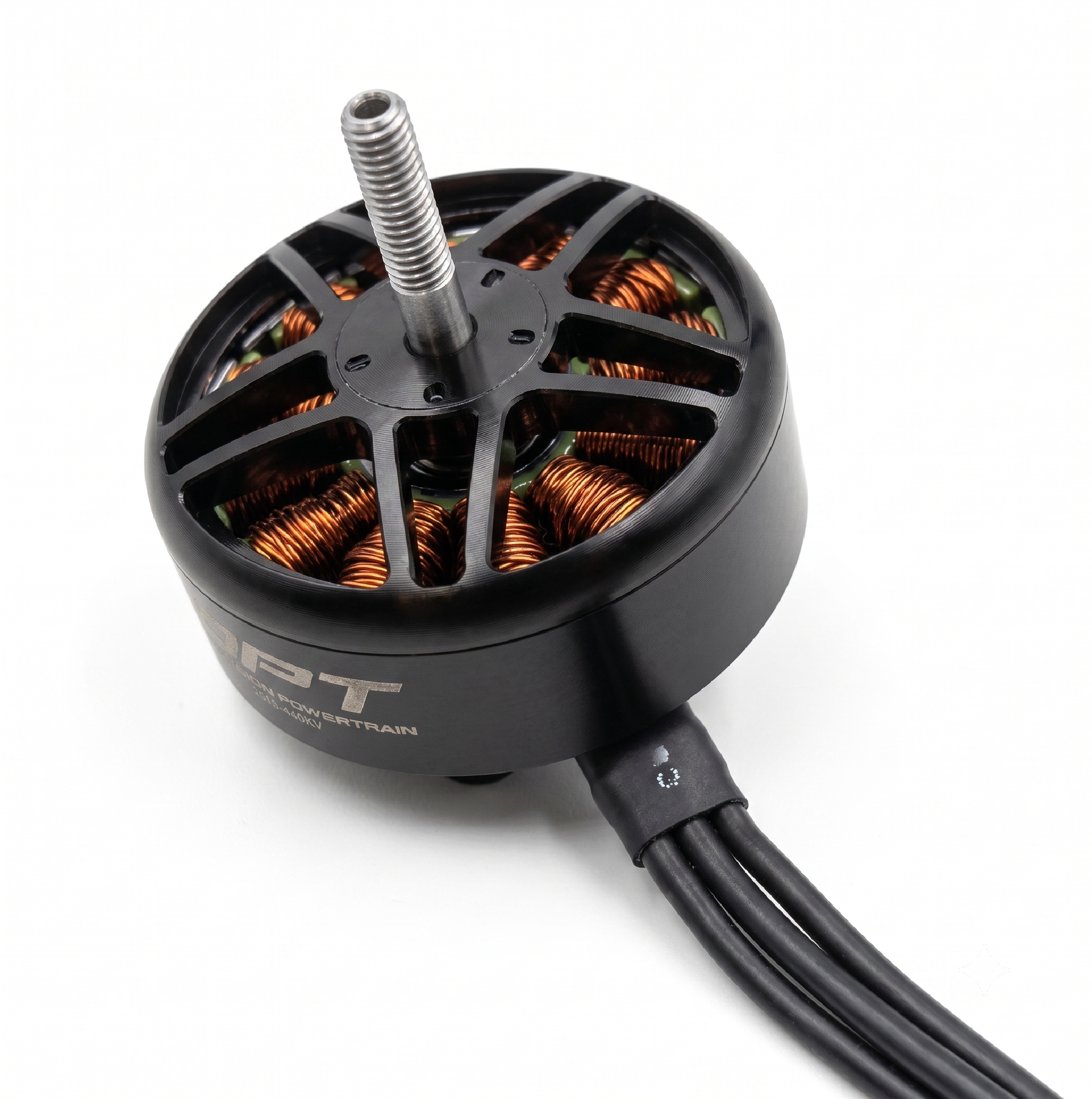

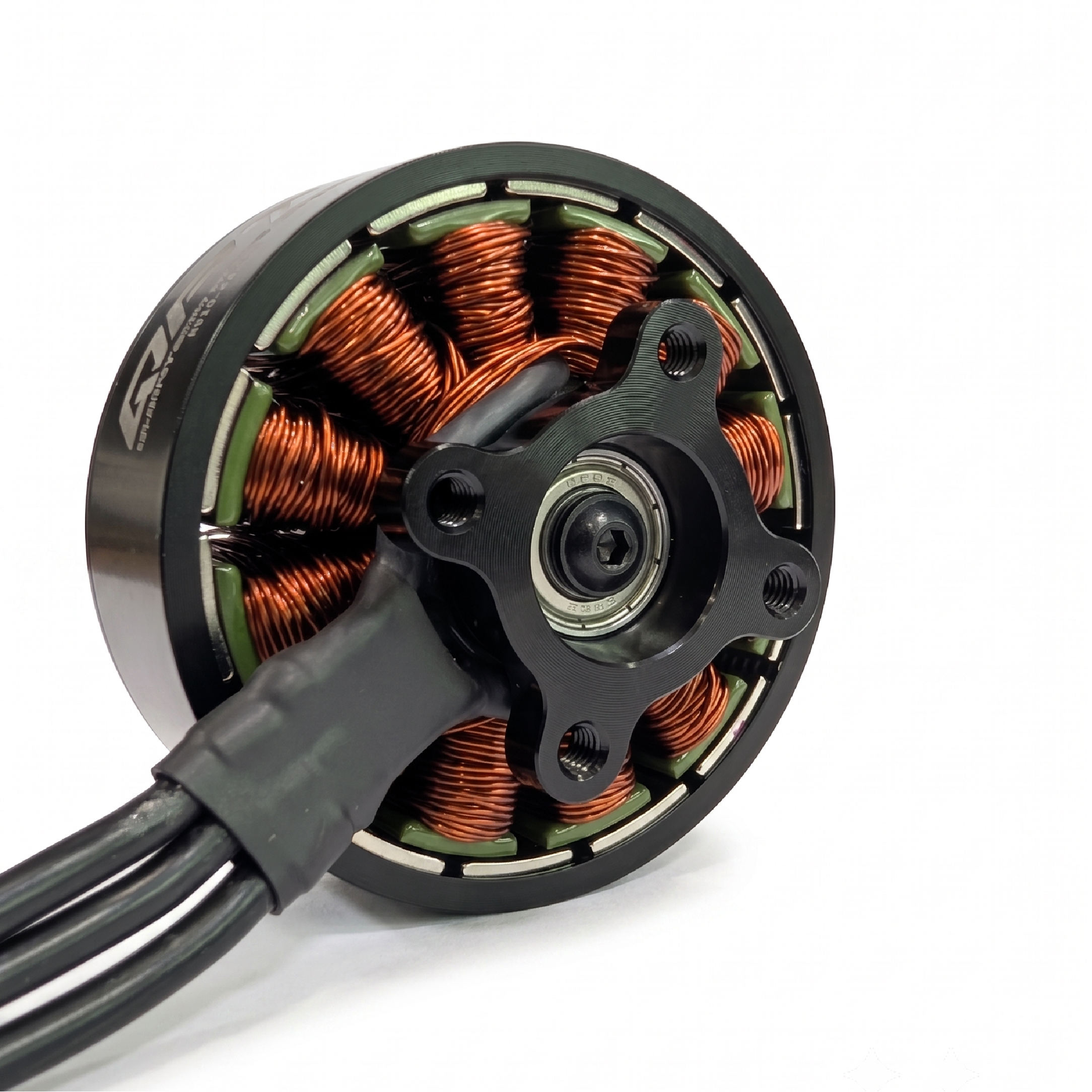

QPT 5315 KV530

Built for heavy-lift and industrial UAV applications, this motor is rated for 8S battery operation and delivers substantial thrust for large-frame multirotors, agricultural drones, and payload-carrying platforms.

Performance Highlights:

High-Lift Capability: Delivers up to 7.71 kg of thrust per motor — suited for heavy-lift multirotor frames and payload drones
High Power Handling: Draws up to 99.3A and nearly 2.95kW at full throttle, built for demanding, sustained high-load flight
Strong Mid-Range Efficiency: Reaches up to 77% motor efficiency in the 40–50% throttle band, good for efficient cruise/hover on heavy platforms
Best-in-Class Low-Throttle Efficiency: Up to 8.4 g/W at low throttle for efficient hover trim

Description

General specifications:

Parameter	Value
Recommended Voltage	8S (~29.7–33.6V)
Max Current	99.3 A
Max System Input Power	2945.7 W
Max Thrust	7713 g (7.71 kg)
Max RPM (verified)	8237
Peak Motor Efficiency	77% (at 50% throttle)
Peak Force Efficiency	8.4 g/W (at 10% throttle)

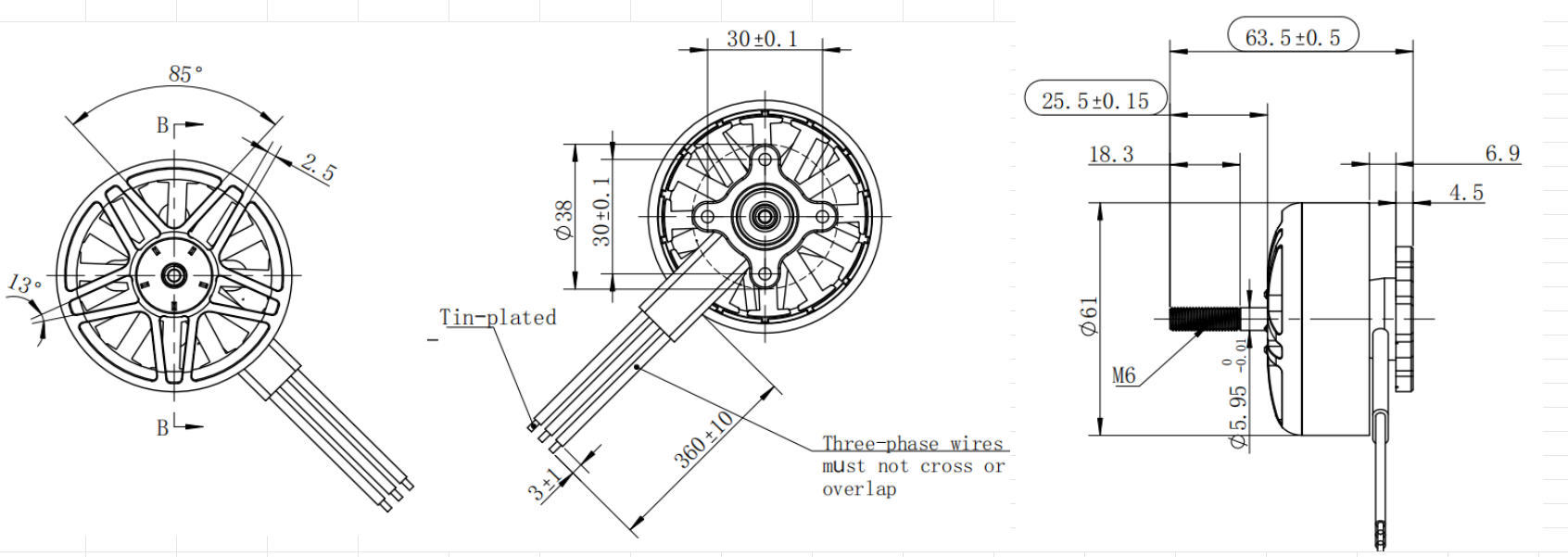

Motor Drawing

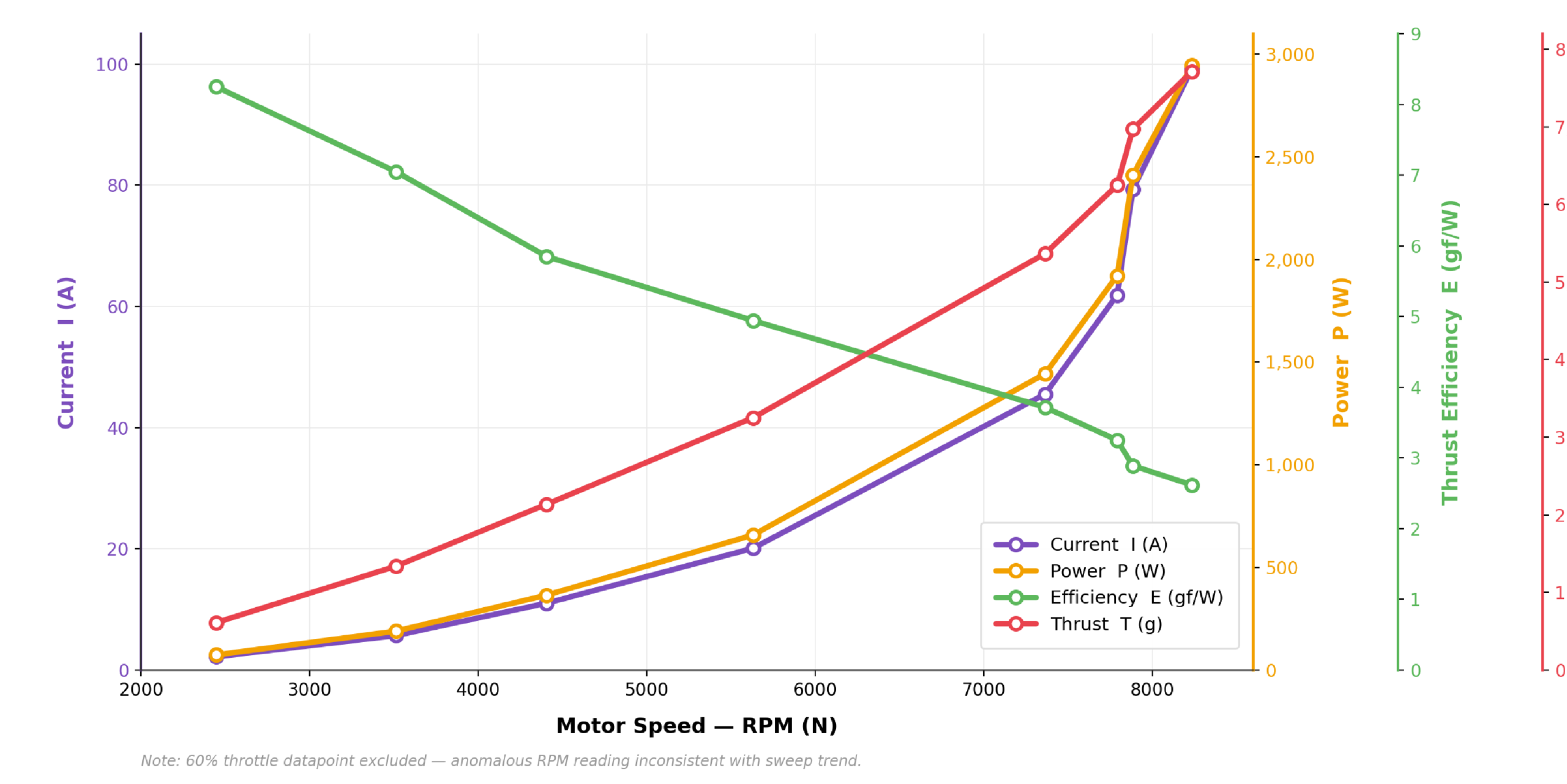

Performance Curve:

Throttle(%)	U(V)	I(A)	N(RPM)	F(KG)	T(N.M)	Motor output power(W)	System input power(W)	Motor efficiency	Propeller force efficiency(G/W)	System force efficiency(G/W)	Z Position	Infrared temperature(C)
0	33.59	0	0.9	-0.00624	-0.0005	0	0	0	0	0	0	-55
10	33.56	0.57	0.9	0.16024	0.054	0	19.1	0	33018.902	8.377	0	-55
20	33.46	2.223	2447.4	0.61343	0.1752	44.9	74.4	0.603	13.669	8.246	0	-55
30	33.3	5.709	3513.2	1.33981	0.359	132	190.1	0.694	10.149	7.048	0	-55
40	33.09	11.044	4407.2	2.13776	0.5692	262.6	365.5	0.718	8.142	5.849	0	-55
50	32.72	20.108	5631.8	3.25242	0.859	506.4	657.9	0.77	6.655	4.944	0	-55
60	32.24	31.872	14729.7	4.35604	1.1632	1792.8	1027.7	1.745	6.719	4.239	0	-55
70	31.7	45.547	7365.2	5.36649	1.4503	1117.9	1443.8	0.774	5.499	3.717	0	-55
80	31.05	61.885	7792.5	6.24843	1.7457	1423.4	1921.7	0.741	4.578	3.251	0	-55
90	30.41	79.301	7886.1	6.97018	1.9811	1635.2	2411.7	0.678	4.262	2.89	0	-55
100	29.67	99.29	8236.8	7.71346	2.2254	1918.6	2945.7	0.651	4.02	2.619	0	-55
