Description
Description:
| Motor Type | BLDC | Feedback Control | HALL SENSOR |
| Operating Voltage | 48 V | Thermal Sensor | NTC |
| Nominal Power | 2 kW | Ingress Protection | IP 67 |
| Peak Power | 4 kW | Cooling Method | AIR COOLED |
| Rated Torque | 35 Nm | Motor Weight | 12 kg |
| Peak Torque | 160 Nm | Max Ambient Operating Temperature | 60 °C |
| Max Speed | 750 RPM | Air Flow (min) | 5 m/s |

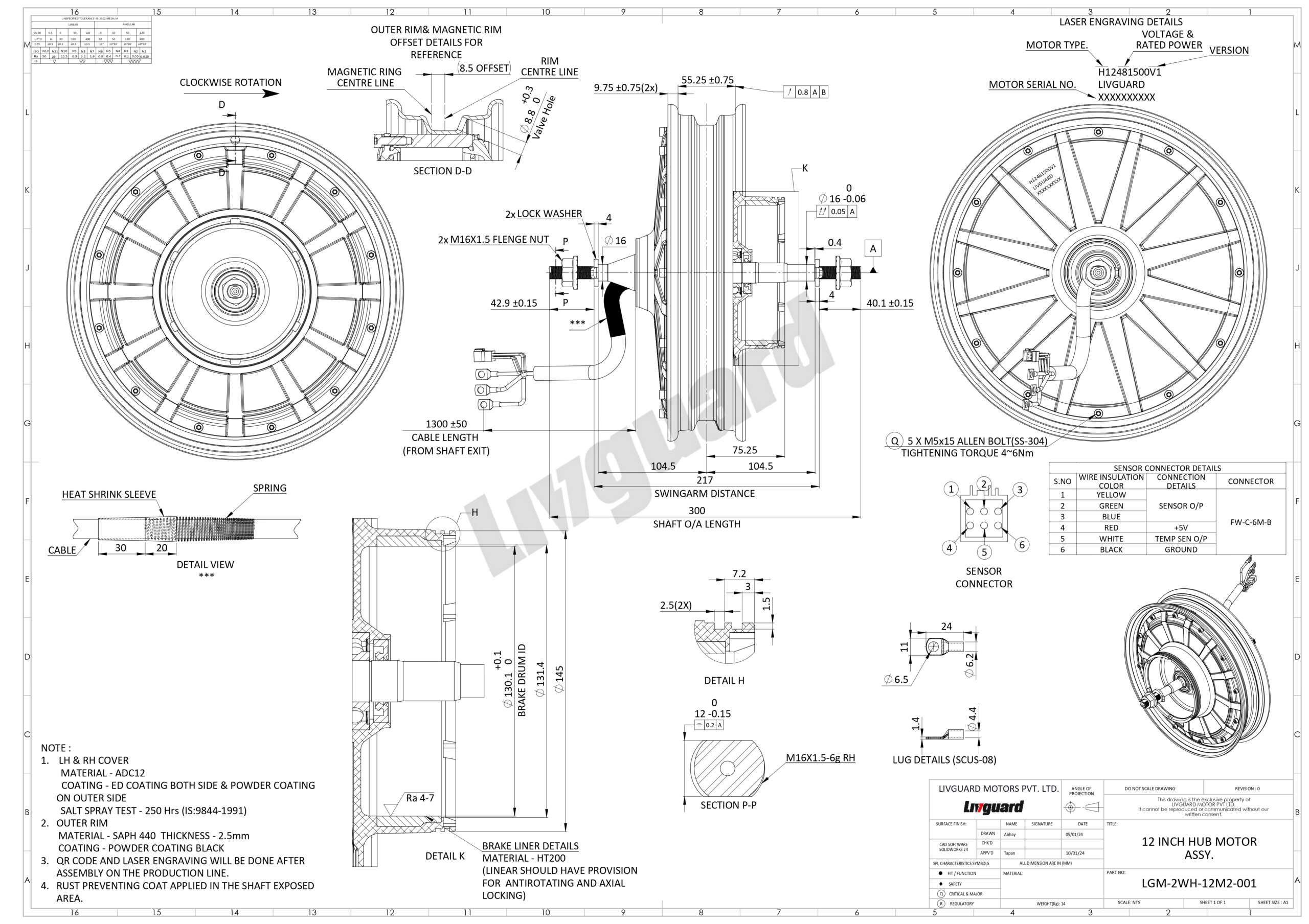

Motor Diagram:
ankit2047 –
Very Reliable Motor
